Cooperating with us you get the possibility of individual fitting and further advice on equipment operation.

ANGIODIN DIAGNOSTING COMPLEXES

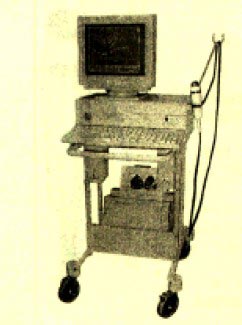

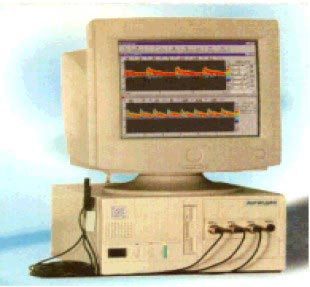

"ANGIODIN-classic" stationary diagnosting complex

Classic doppler system on the basis of modern PC for the transcranial, extracranial, peripheral and microvascular examination of in-patients. "Doppler Diagnostics" software with built-in patients files. 15'' multimedia monitor, colour inkjet printer, instrument desk, special operating console, floor push and isolation transformer.

"ANGIODIN-Notebook" Doppler complex

An ideal high-sensitive system on the basis of portable PC with a multifunctional Doppler diagnostics software developed for the efficient vessels examination in hospital and ambulance conditions. Monitoring programme with embolism detection. Fitted for intraoperative and reanimation use. Weight (including crashproof case) - 8 kg.

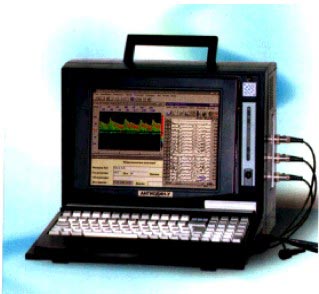

"ANGIODIN-universal" portable diagnostic complex

A universal complex for all kinds of Doppler examinations. It is convenient in use both in hospiutal and ambulance conditions and combines the advantages of a stationary complex (full-scale PC, "Doppler Diagnostics" software) and the mobility of a portable system. A special case for carrying, colour inkjet printer, operating console, floor push.

• an echoencephalographer "ANGIODIN-Echo";
• 24-channel EEG;
• a reographer;
• 12-channel EKG.

"ANGIODIN" provides:

• transcranial examination using high-sensitive hand probe and special 2 MHz monitor probes:
  • diagnostics of intracranial stenosis and occlusions;
  • evaluation of collateral blood circulation in circulus arteriosus cerebri;
  • cerebral haemodynamics control (including intraoperational one);
  • evaluation of intracranial hypertension and brain death;
  • registration of embolism and its level evaluation;
  • medication influence monitoring and functional tests control;
• extracranial/ peripheral examination using universal probes 5/8 MHz operating in continious and pulse mode thus improving the diagnostics accuracy;
  • diagnostics of intracranial stenosis and occlusions;
  • arterial occlusing and venous deficiency diagnostics in extremities using large-sized pneumoglands and automatic pneumocompressor;
• microvascular examination using a special 16 MHz microprobe 1,5-3 mm in diameter:
  • small-sized vessels blood flow diagnostics;
  • examination on an open vessel or intravascular one (vascular surgery or cardiosurgery, microsurgery, neurosurgery);
• "ANGIODIN" two-channel models in a stationar and portable mode provides simultaneous transcranial monitoring using two 2 MHz probes and a special helmet; a unique possibility of synchronous operating of 2 MHz transcranial probe and any other probe (4/8/16 MHz) during functional test or intraoperatively.
• Doppler Diagnostics software for "Windows' 98":
  • database, patient files;
  • automatic calculation of 14 haemodynamical characteristics;
  • monitoring with embolism registration;
  • multichannel screen planning.

ULTRASOUNG COMPUTER ECHOENCEPHALOGRAPHER "ANGIODIN-ECHO"

An efficient and simple two-channel unidimensional echoencephaloscopy technique for cerebral deseases and brain injuries diagnostics is widely used in: neurology; neurosurgery; traumatology; paediatrics; otolaryngology;

• to diagnose space-occupying brain lesions, cysts presence, brain injuries;
• to distinguish between hemorrhagic and ischemic strokes;
• to diagnose brain hemiotrophy using pulsogram registration technique.

• A-echogram;
• A+A with a transmission marker;
• A+M;
• A-pulsogram;
• T-transmission

• "ANGIODIN-Echo" for children examination
  Complex is equipped with two 2MHz probes for improving the examination accuracy.
• "ANGIODIN-Echo"-antroscope for ENT-examination - brand-new!
  The usage of 3 MHz US-probe for maxillary and frontal sinuses state assessment as well as for fluids, cysts, tumors presence diagnostics.
  An ideal innocuous device for children and pregnant women examination without exposure to X-radiation.

"ULTRASCAN" ULTRASOUND SCANNERS

Application field "Ultrascan" echotomocardioscopes have been designed for the ultrasound diagnostics (USD) of abdominal cavity and small pelvis organs, thyroid and mammary gland, brain in children, doppler diagnostics of heart and vessels.

1. Scanning:
   • Segment mechanical: angles of 60 ang 90 degrees;
   • Linear electronic: 100 mm wide.
2. Focusing:
   • Dinamic and fixed by segment focusing;
   • Bifocal by linear scanning.
3. Echogram types:
   • - В,
   • 2В,
   • М+В,
   • М,
   • В+D with markinhg control by processing of M+D echograms.
4. Speed of M and D scanning: 2,5, 5, 10 cm/sec.
5. Working frequency:
   • segment scanning 3,5 MHz, 5 MHz;
   • linear scanning 3,5 MHz.
6. Resolution mm/MHz:
   • along the line 1,0/3,5; 0,715;
   • transversal 2,5/3,5; 1,5/5.
7. Depth regimes 60…220 mm.
8. Silent zone size 10mm.
9. Strobe size in D-mode 2,5-20 mm.
10. Maximal registratable blood flow speed 15 m/sec.
11. Image processing:
    • 5-graded gamma correction;
    • interframe filtration (4 variants);
    • dynamic range adjusting (10-80dB);
    • dynamic depth gain adjusting in 7 zones;
    • 64 shades of gray
12. Measurment functions: interval; area; circumference; speed; time; heart rate; pregnancy term; cardial functions.
13. Echogram archiving:
    • electronic (at least 3 thousands of echograms);
    • on a floppy disk (8-10 echograms);
    • printing on a laserjet.
14. Video buffer up to 100 frames with archiving, slowed-down viewing and measuring on any frame provided.
15. Power supply 220V, 50 Hz, 140VA
16. Weight:
    • a stationar device (a trolley excluded) - 22 kg.
    • an add-on 7 kg

ELECTROENCEFALOGRAPHS AND THE DEVICES FOR BRAIN GENERATED POTENTIAL EXAMINATION

8-channel electroencefalograph with photo- and phonostimulators;

16-channel electroencefalograph with photo- and phonostimulators;

19-channel electroencefalograph with photo- and phonostimulators;

25-channel computer complex for bioelectrical activity examination with the polygraph function.

"BrainLoc"
the program for location of pathological activity sources in brain structures.

"Poly-Spectrum-Rhythm"
the heart rhythm variability analysis program for "Neuron-Spectrum" equipped with complex for cardiovascular tests, vegetative tonus examination, reactivity and vegetative activity by rythm variability analysis at the state of dormancy as well as by D. Ewing cardiovascular tests. Cardiovascular tests equipment included: Tonometer, manometer with an add-on device and adjutage set for Valsalva test, carpal dynamometr.

"Neuron-Spectrum-DVP"
the program for EEG "Neuron-Spectrum" examination of latent visual, audial and cognitive (P300) generated potentials with topographic mapping.

"Neuron-Spectrum-KVP"
the program and equipment for EEG "Neuron-Spectrum-4" examination of visual, audial, somatosensory and cognitive (P300) generated potentials.

• wide range of application: physiotherapy, neurology, sports medicine, obstetrics, hynecology, neonatology, etc;
• may be used at home for patients' general health and sleep improvement, productivity increase, stress removal;
• curing sportsmen after training and competitions;
• obvious clinical effect while treating miscarriage, labor anomality, hypogalactia, prenatal hypoxic encephalopathy.
